Used Adaptronic Modular Plug-in ECU – Mazda RX-7 FD3S Series 6 + DBW Module
Used Adaptronic Modular Plug-in ECU – Mazda RX-7 FD3S Series 6 + DBW Module
AVAILABILITY & LEAD TIME
In-stock items are normally dispatched promptly. Products not currently in stock may require additional supplier lead time before dispatch.
If you need an item urgently, please contact RSG before ordering to confirm current availability.

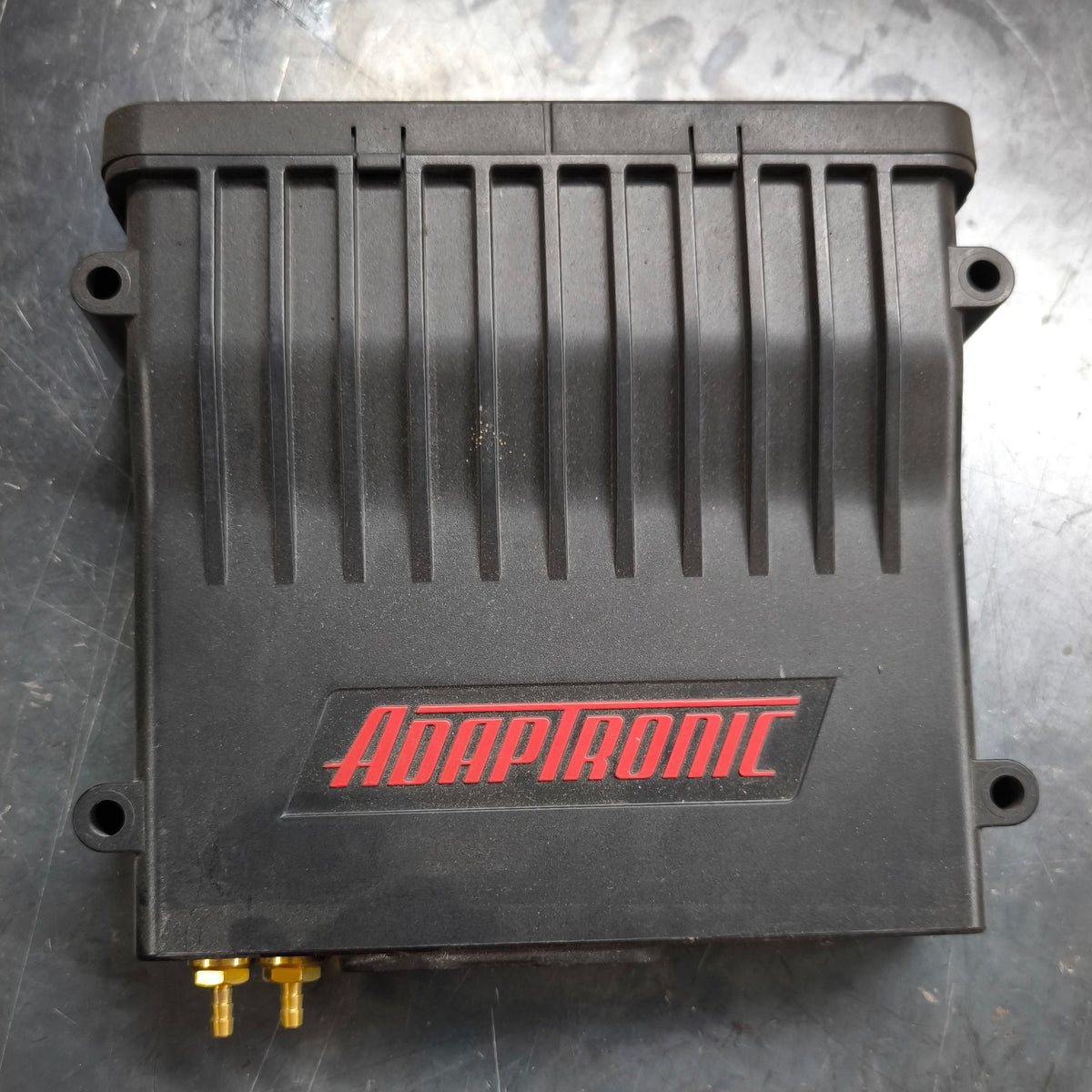

Used Adaptronic Modular Plug-in standalone ECU for the Mazda RX-7 FD3S Series 6, equipped with the optional Adaptronic Drive-By-Wire (DBW) module.

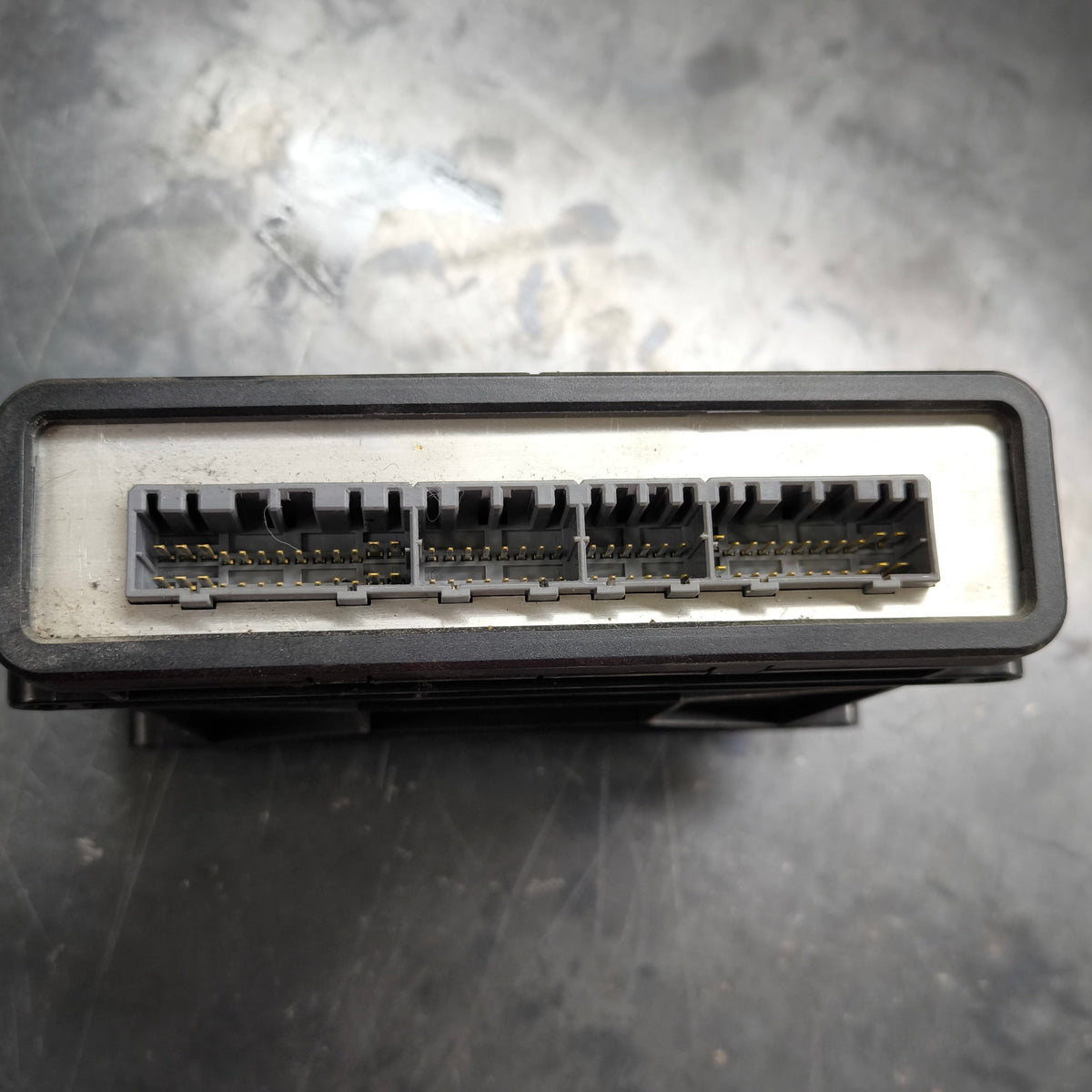

This is the eMod011 Modular Plug-in ECU, designed to connect directly to the factory Series 6 RX-7 FD3S ECU harness while providing substantially greater engine management capability than the original ECU.
This particular ECU is also fitted with the optional Adaptronic DBW expansion module, allowing electronic throttle control to be configured as part of a suitable DBW conversion.
An excellent ECU for a modified, single-turbo or high-performance FD3S where a capable standalone ECU is required while retaining the factory ECU connector.
PRODUCT FEATURES
- Genuine Adaptronic
- Modular Plug-in ECU
- Model: eMod011
- Mazda RX-7 FD3S Series 6 Plug & Play application
- Connects to the factory S6 ECU harness
- Optional Drive-By-Wire module installed
- Suitable for electronic throttle / DBW conversions
- 2 × internal 4-bar MAP sensors
- 8 injector outputs
- 8 ignition outputs
- Multiple configurable auxiliary outputs
- Multiple temperature and 0–5V analogue inputs
- Fuel and oil pressure input capability
- Knock input
- CAN communication
- Serial communications
- USB tuning connection
- Onboard data logging
- Boost control capability
- Flex-fuel capable with appropriate sensor/configuration
- Configurable fuel and ignition strategies
- Eugene tuning software
DRIVE-BY-WIRE MODULE

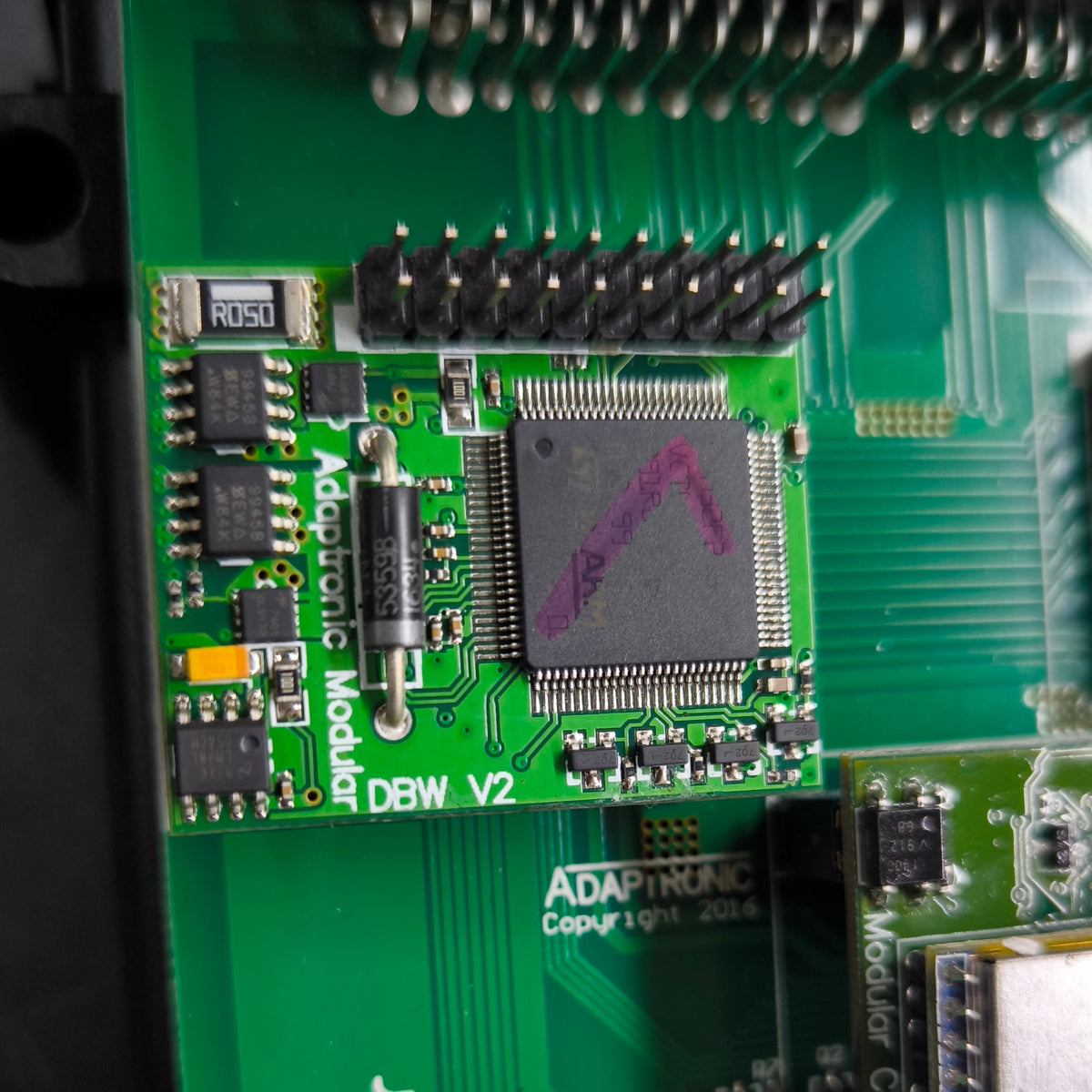

This ECU includes the Adaptronic DBW expansion module.
The DBW module adds electronic throttle control capability to the Modular ECU, making the ECU particularly useful for FD3S builds converted from the original mechanical throttle to a modern electronic throttle body.
A complete DBW installation requires the appropriate:
- Electronic throttle body
- Accelerator pedal position sensor
- Correct wiring
- ECU configuration
- Safety and failsafe calibration
These components are not included unless specifically shown or stated in the listing.
FITMENT
Mazda RX-7 FD3S
- Series 6
- 13B-REW
- Factory Series 6 ECU connector
- Standard or modified engine
- Single-turbo conversions
CONDITION
USED
Used Adaptronic Modular ECU in working condition.
As with any used standalone ECU, the existing calibration should not be assumed to be suitable for another vehicle.
The ECU must be correctly configured and tuned for the specific engine, injectors, ignition system, sensors, fuel system, turbocharger and DBW hardware used on the vehicle.
PRODUCT SPECIFICATIONS
Manufacturer: Adaptronic

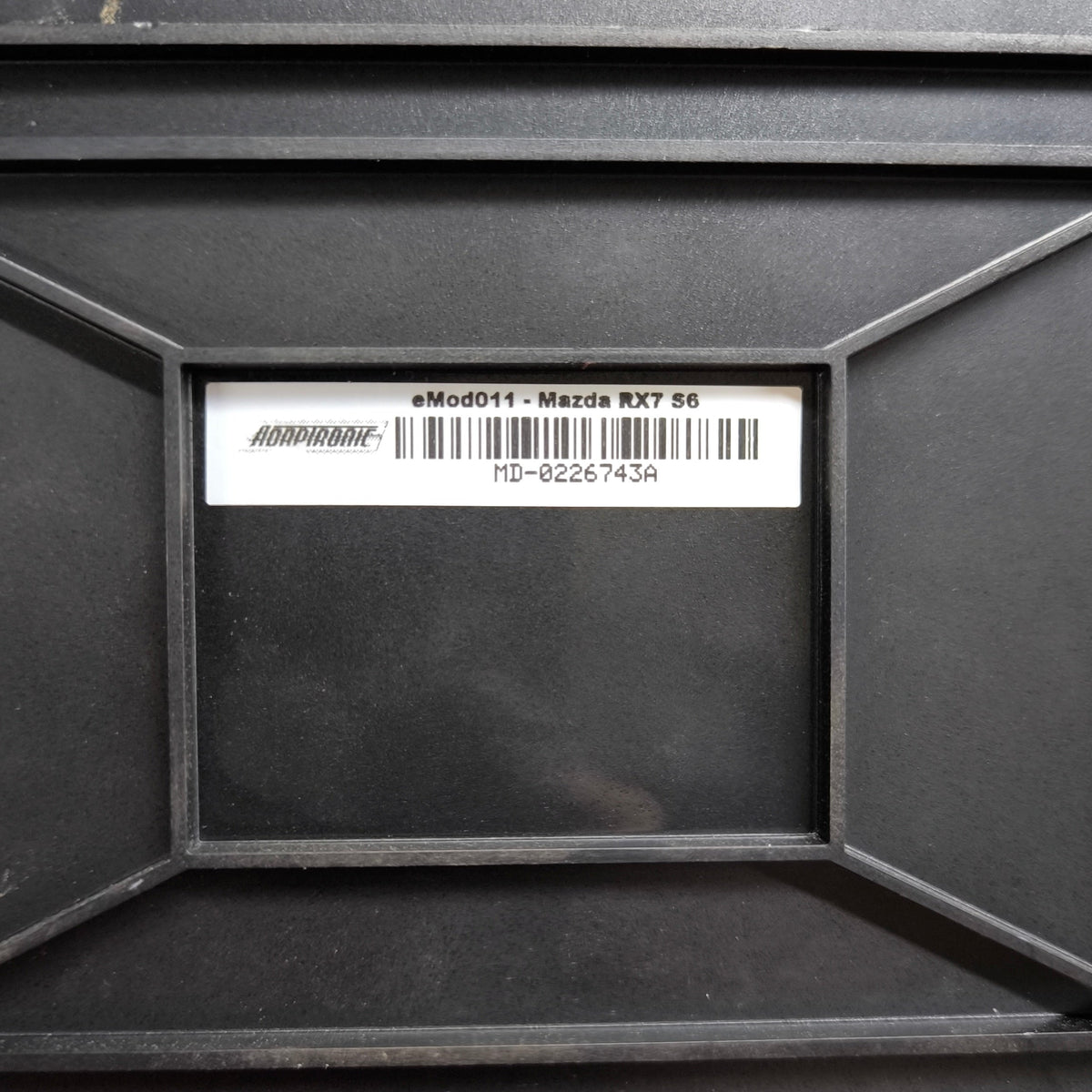

Part Number: eMod011
Condition: Used
Country of Origin: Australia
